MAIN ADVANTAGES

• More plant efficiency
• Reduction of the volumes of the facilities
• Decreases civil works
• Very low pressure drop
• High mechanical resistance
• Easy maintenance
• Easy positioning thanks to the lightness
• Resistance to many chemical and biological agents

LAMELLAR PACKINGS FOR WASTE WATER TREATMENT

EUROFILL produces various models of lamellar packs.

These systems make it possible to reduce the volume of new sedimentation systems and to improve the performance of the existing overloaded or undersized systems.

In fact, the LAMELLAR PACKS increase the sedimentation surfaces of all new decanters and the performance of existing systems, while reducing the overall space and costs of civil engineering works.

The LAMELLAR PACKS are used in all types of primary, secondary and tertiary sedimentation, but also in clarifiers and in the most complex clariflocculators and floaters. They can be manufactured in a conventional rectangular shape or in different geometric shapes.

We provide them in sheets and in various parts to reduce the cost of transportation or in assembled in blocks with frames of containment. The frames can be made in AISI 304, AISI 316 L or in galvanized steel.

Furthermore, we can provide supporting shelves to fix them to the wall of the civil engineering works and Thomson overflow weir ducts.

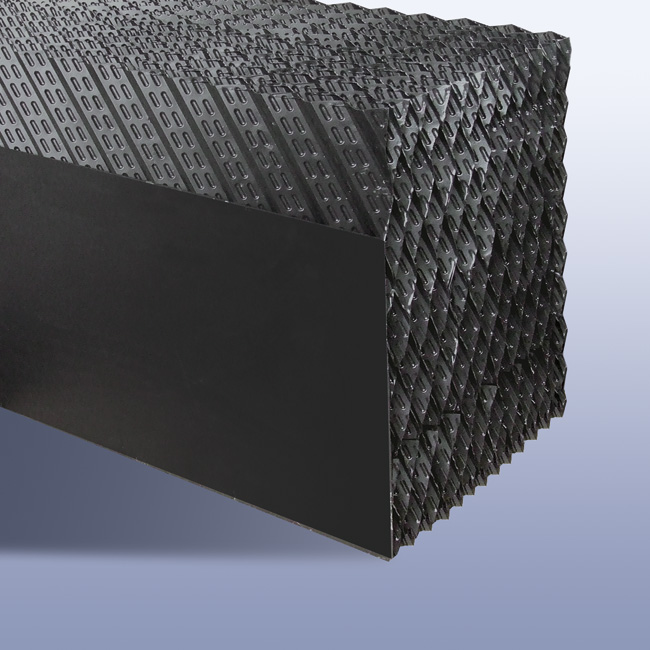

  • LAMELLA 27

    This modular lamellar pack is achieved through the assembly of PVC plates, which are shaped by thermoforming.  It is indicated to increase the specific surface area of sedimentators and flocculators...





  • MARLEX 50

    This modular lamellar pack is achieved through the assembly of PS plates, which are shaped by thermoforming.  It is indicated to increase the specific surface area of sedimentators and flocculators.

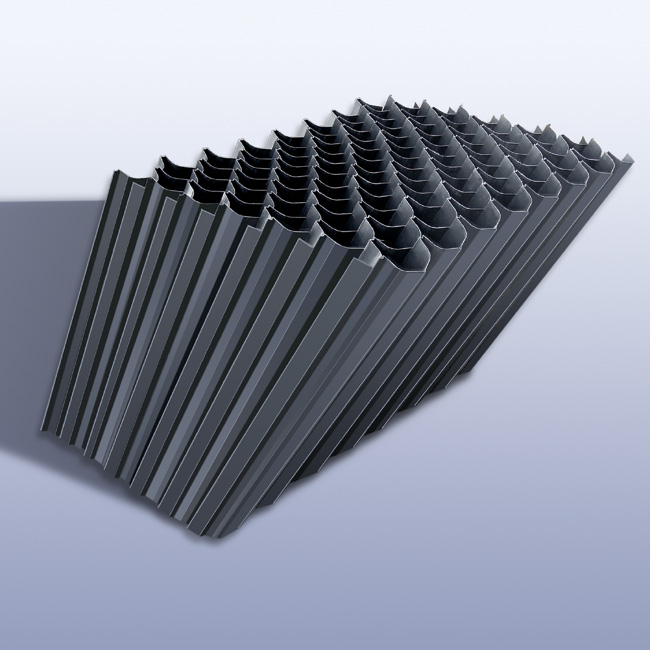

  • BIOX 80

    This modular lamellar pack is achieved through the assembly of PVC plates, which are shaped by thermoforming.  It is indicated to increase the specific surface area of sedimentators and flocculators.





  • ONDA 27

    This modula lamellar pack is composed of a series of corrugated sheets of high quality PVC, which are assembled with the direction of the corrugations inverted every other sheet and glued together to form modules of the dimensions listed in the technical data.



  • ONDA 20

    This modular lamellar pack is composed of a series of corrugated sheets of high quality PVC, which are assembled with the direction of the corrugations inverted every other sheet and glued together to form modules of the dimensions listed in the technical data.



  • ONDA 50

    This modular lamellar pack is composed of a series of corrugated sheets of high quality PVC, which are assembled with the direction of the corrugations inverted every other sheet and glued together to form modules of the dimensions listed in the technical data.
